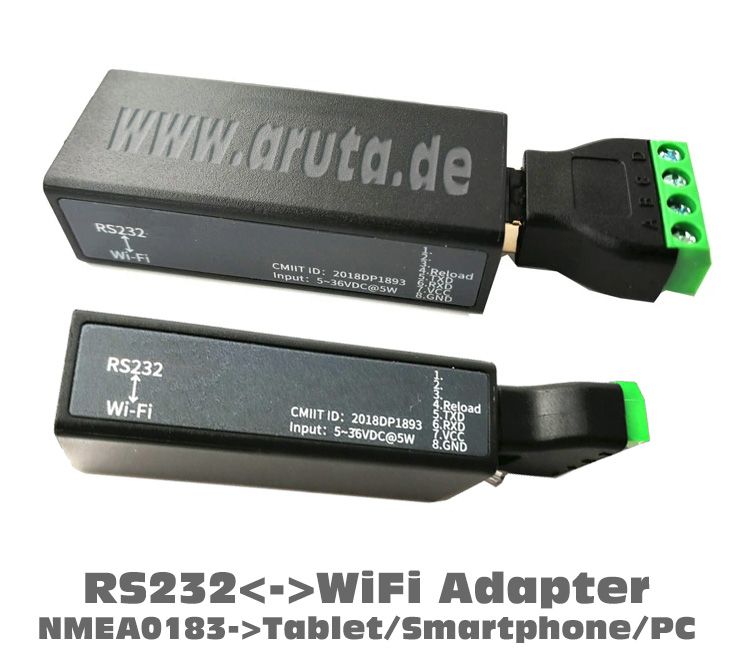

Mini WiFi Router EW-10A RS232 to WiFi

AIS und GPS Daten von allen AIS Transpondern mit RS232 Schnittstelle im NMEA0183 Format an Smartphones, IPads, Tablets , PC's oder Notebooks senden. (Geeignete AISA fähige Navigationssoftware wie Navionics Boating, NVCharts, openCPN oder andere vorausgesetzt).Deutshche und Englische Installationskurzanleitung wird mitgeliefert.

Support 802.11bgn Wireless Standard
Support TCP/UDP/Telnet /Modbus TCP Protocol
Support RS232/RS485 to Wi-Fi Conversion, Serial Speed Up to 230400 bps
Support STA/AP/AP+STA Mode
Support SmartLink V8 Smart Config (Provide APP)

Support 802.11bgn Wireless Standard
Support TCP/UDP/Telnet /Modbus TCP Protocol
Support RS232/RS485 to Wi-Fi Conversion, Serial Speed Up to 230400 bps
Support STA/AP/AP+STA Mode
Support SmartLink V8 Smart Config (Provide APP)

Key Application

The EW1X device connects serial device to networks using the TCP/IP protocol:
Remote equipment monitoring
Asset tracking and telemetry
Security Application
Industrial sensors and controls
Medical devices
ATM machines
Data collection devices
Universal Power Supply (UPS) management units
Telecommunications equipment
Data display devices
Handheld instruments
Modems
Time/attendance clocks and terminals

The EW10A provides RS232/RS485 interface to Wi-Fi connectivity. The EW1X integrate
TCP/IP controller, memory, high-speed serial port and integrates a fully developed TCP/IP network
stack and mbed OS. Elfin-EW1X also support remotely configure, monitor with IOTService.
The EW1X using highly integrated hardware and software platform, it has been optimized for all
kinds of applications in the industrial control, smart grid, personal medical application and remote
control that have lower data rates, and transmit or receive data on an infrequent basis.
The EW1X integrates all serial to Wi-Fi functionality with 61 x 26 x 17.8mm size.

System Information
Processor/Frequency 160MHz
Flash/SDRAM 2MB/352KB
Operating System mbed
Network Protocol IP,TCP,UDP,DHCP,DNS,/Client HTTP Server ,ARP, BOOTP,
ICMP AutoIP,,Web socket, Telnet, uPNP, NTP, Modbus TCP TLS v1.2
Security Protocol AES 128Bit, DES3
Wi-Fi Interface
Standard 802.11 b/g/n
Frequency 2.412GHz-2.484GHz
Network Mode STA/AP/STA+AP
Security WEP/WPAPSK/WPA2PSK
Encryption WEP64/WEP128/TKIP/ AES 802.11b: +18dBm (Max.)
Tx Power 802.11g: +16dBm (Max.), 802.11n: +15dBm (Max.), 802.11b: -89dBm
Rx Sensitive 802.11g: -81dBm, 802.11n: -71dBm
Antenna Internal:PCB
Serial Port EW10:1 RS232
Port Number EW11:1 RS485
Data Bits 7,8

Stop Bit 1,2
Check Bit None, Even, Odd
Baud Rate TTL: 300 bps~230400 bps
No Flow Control Flow Control, Xon/ Xoff flow control
Software Web Pages : Http Web Configuration, Customization of HTTP Web Pages
Configuration Web, CLI, XML import, Telnet, IOTService PC Software
Basic Parameter
Size 61 x 26 x 17.8 mm
Operating Temp. -40 ~ 85°C RH(condensation)
Storage Temp. -45 ~ 105°C, 5 ~ 95%
Input Voltage : 5~36VDC
Working Current ~200mA
Power <700mW
